HOWO 6x6 Dump Truck Chassis

SINOTRUK HOWO 6x6 Dump Truck Chassis
Availability:
Quantity:

HOWO 6X6 Dump Truck Chassis

 Cabin

Driving type 6x6

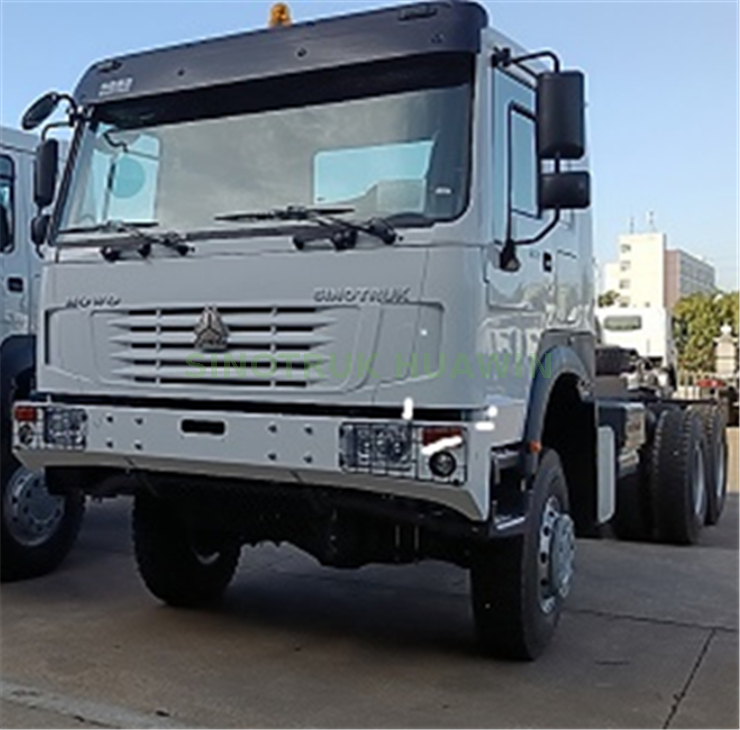

Howo 6x6 Dump Truk Chassis1



HW76 standard   cab, with two seats and A/C, 70°hydraulically tillable to the front as   attached photo for ref.

Vehicle Main Dimensions

Overall   dimensions (L x W x H)mm

8200×2500×3300

Wheel   base  (mm)

3625+1350

Wheel   track  (front/rear) (mm)

2020/1800

Approach/Departure   angle(°)

19/23

Weight in KGS

Tare Weight

12440

payload

35000

Front axles   loading capacity

1x9000

Rear axles   loading capacity

2x16000

Max. driving speedkm/h

85

Engine

Brand

Sinotruk

Model

WD615.47

Type

4-stroke direct   injection ,  6-cylinder in-line with   water cooling, turbo-charging and inter-cooling

Horse PowerHP)

371@2200   rpm

Emission   standard

Euro

Gearbox

HW19710, 10 Forwards   gear & 2 reverse gear

Clutch

Reinforced   diaphragm clutch, diameter 430mm

Steering Gear

ZF 8118,power   steering, hydraulic steering with power assistance

Fuel tank (L)

300

Tire

12R22.5   tubeless tyre 11 pcs including one spare tire

Brakes

Service   brake: dual circuit compressed air brake

Parking   brake :(emergency brake): spring energy, compressed air operating on rear   wheels

Auxiliary brake: engine exhaust brake




Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.


Our certificates

Certificate



HUAWIN's purpose has always been customer satisfaction from start to end.

Through the establishment of research, efficiency, integrity and pragmatic service networks, HUAWIN has standardized quality service.

We will continue to examine, in-depth, of our services, our customers, and the market to find new innovative service concepts, improve our service management.

We will make sure that every one of our product and service suppliers, parts suppliers, parts distributors can join in to better serve our customers, we will stand side by side to continuously build our brand image, creating the golden standard in the truck industry.


Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )

Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....


Factory view

factory view

workshop


About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
