Introduction of SINOTRUK 6X4 HOWO Tractor Truck 430HP
Introduction: Sinotruk 6x4 Howo Tractor truck with 430 HP is a very typical tractor truck that has been sold overall the world and accepted widely. It has strong horse power, which can satisfy almost all kinds of the requirements of scenarios. The standard type has HOWO 76 Standard cab, with one bed and Air Condition, 70°hydraulically tillable to the front as attached photo for ref. The overall dimensions (L x W x H)mm is: 7000x2550x3100. For more information, please refer to the following parameters.
1. The parameters of SINOTRUK 6X4 HOWO Tractor Truck 430HP
SINOTRUK 6X4 HOWO Tractor Truck 430HP
Cabin | Driving type 6x4 LHD |
|
HOWO 76 Standard cab, with one bed and Air Condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7000x2550x3100 |
Wheel base (mm) | 3200+1400 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 9000 |
Front axles loading capacity | VGD95 1x9000 | |
Rear axles loading capacity | HC 16 2x16000, ratio 4.8 | |
Engine | Brand | WEICHAI |
Model | WP12.430E201 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 430HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19712C, 12 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | BOSCH power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tire 11 pcs including one spare | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Other details | Fifth wheel 3.5 inches, enhanced chassis(8+8+8), high steel bumper, reversing buzzer | |

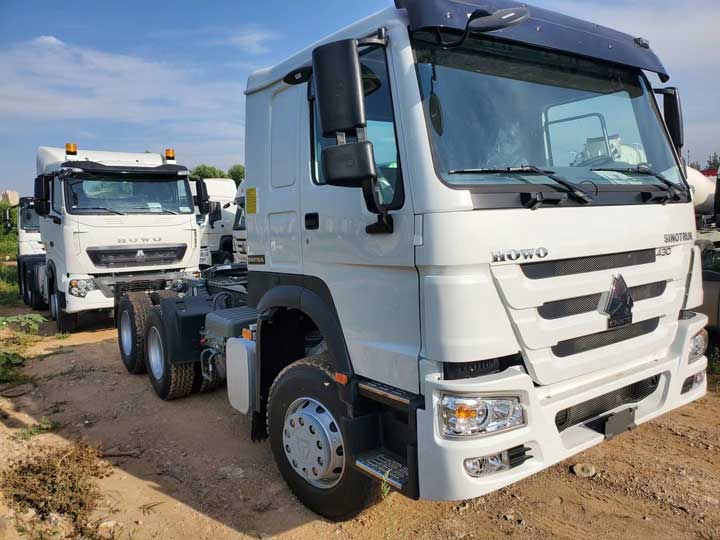

2. The real pictures of SINOTRUK 6X4 HOWO Tractor Truck 430HP
