ZZ1107G451CD
SINOTRUK HOWO

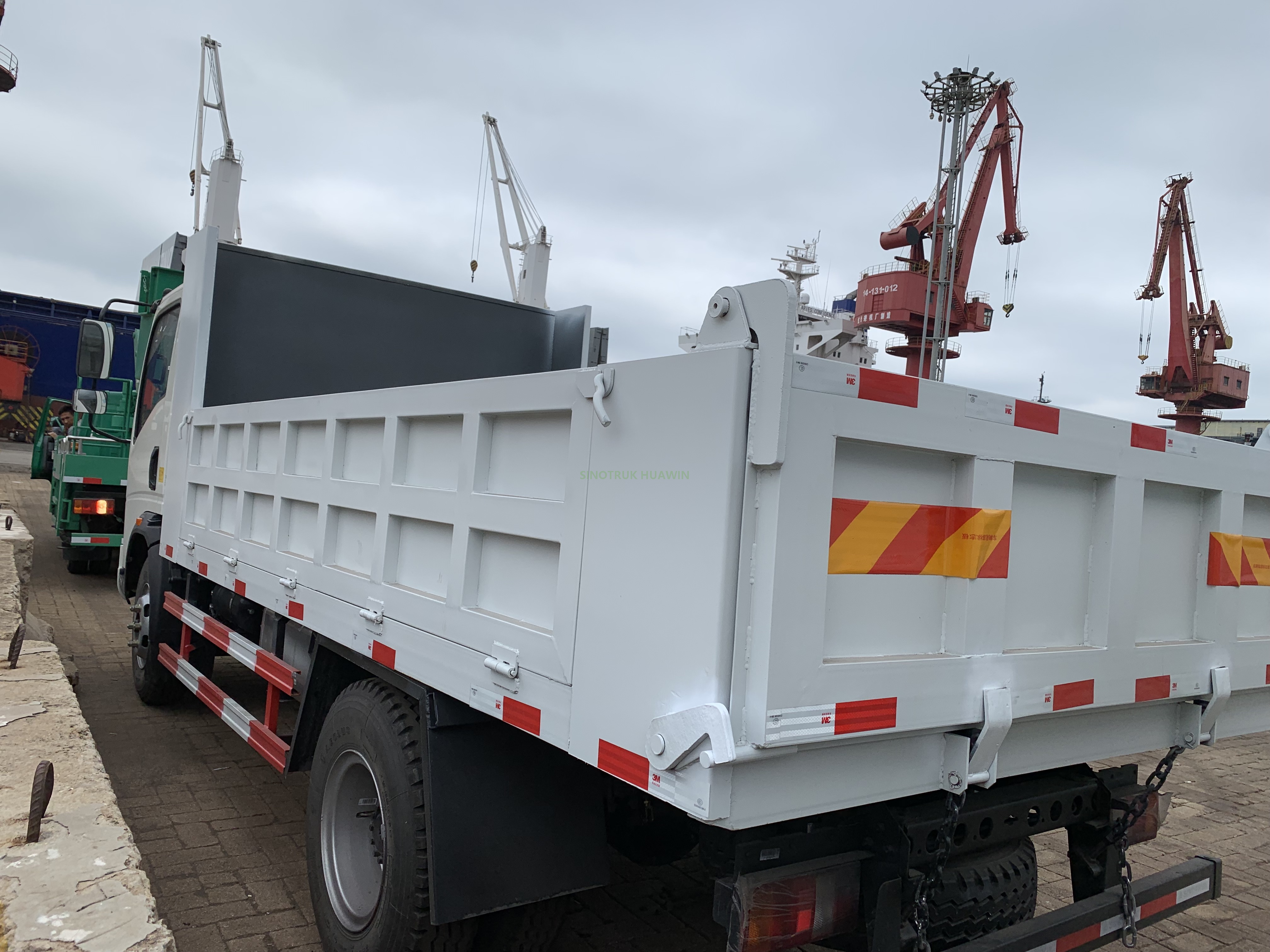

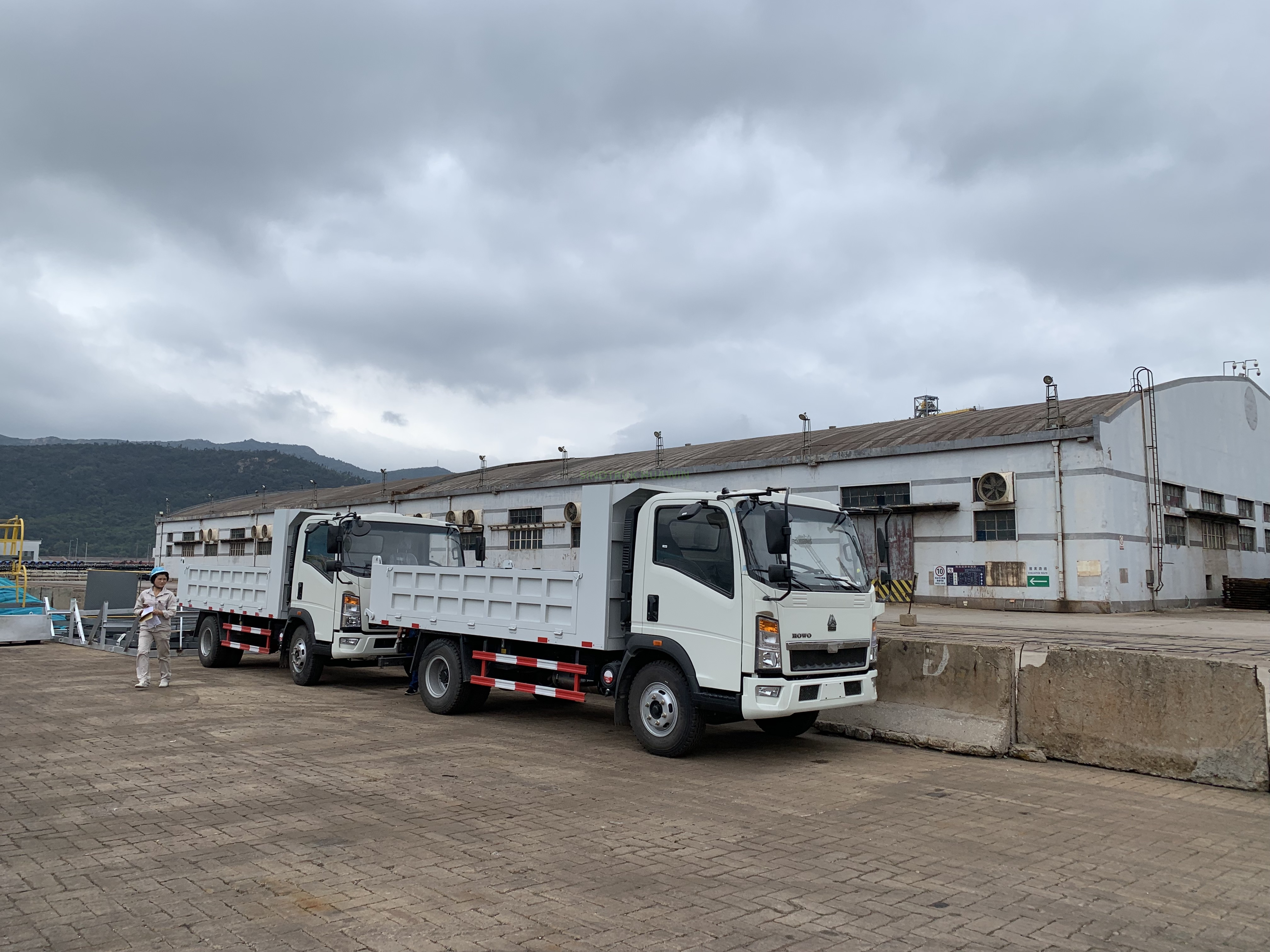

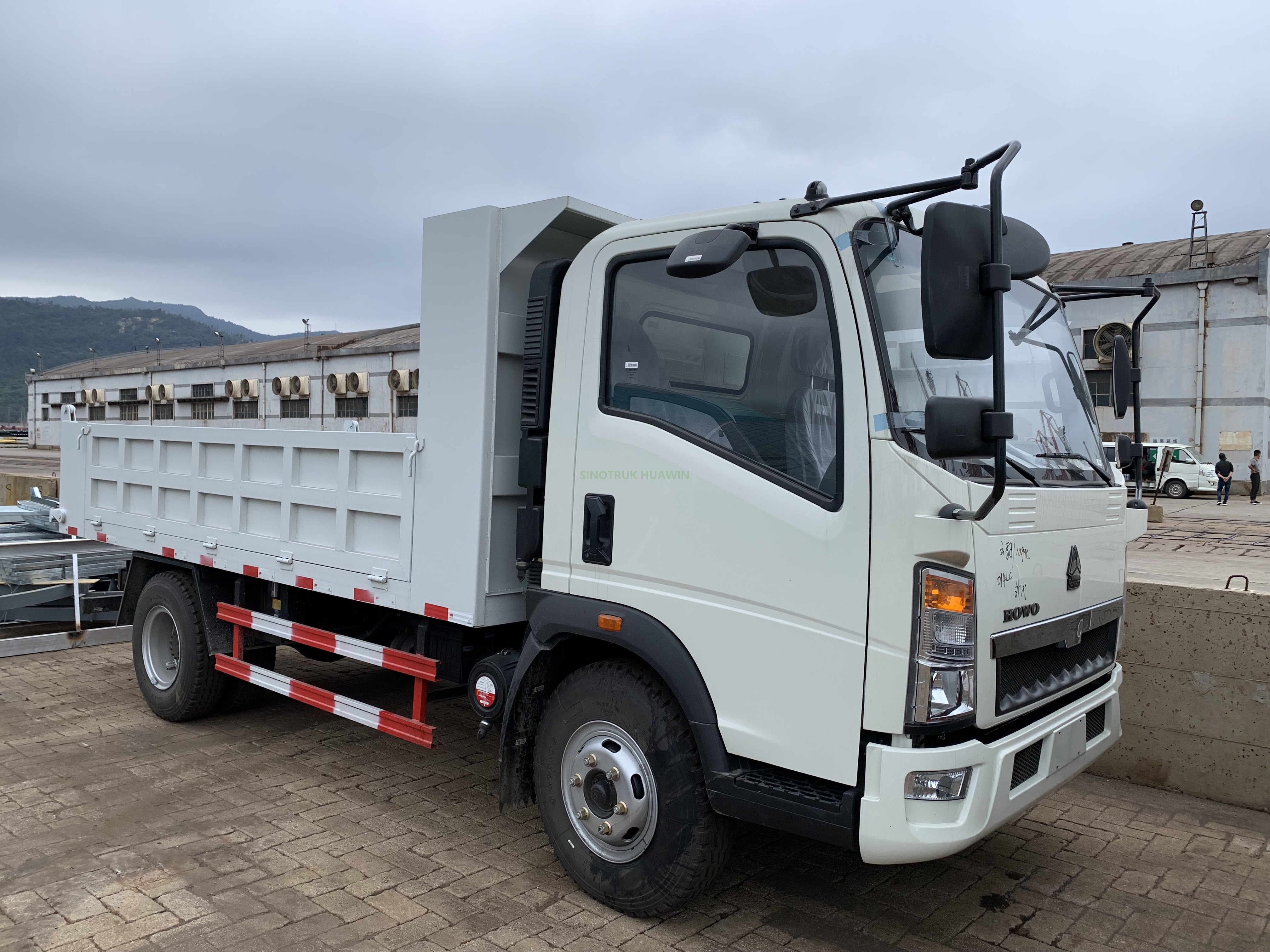

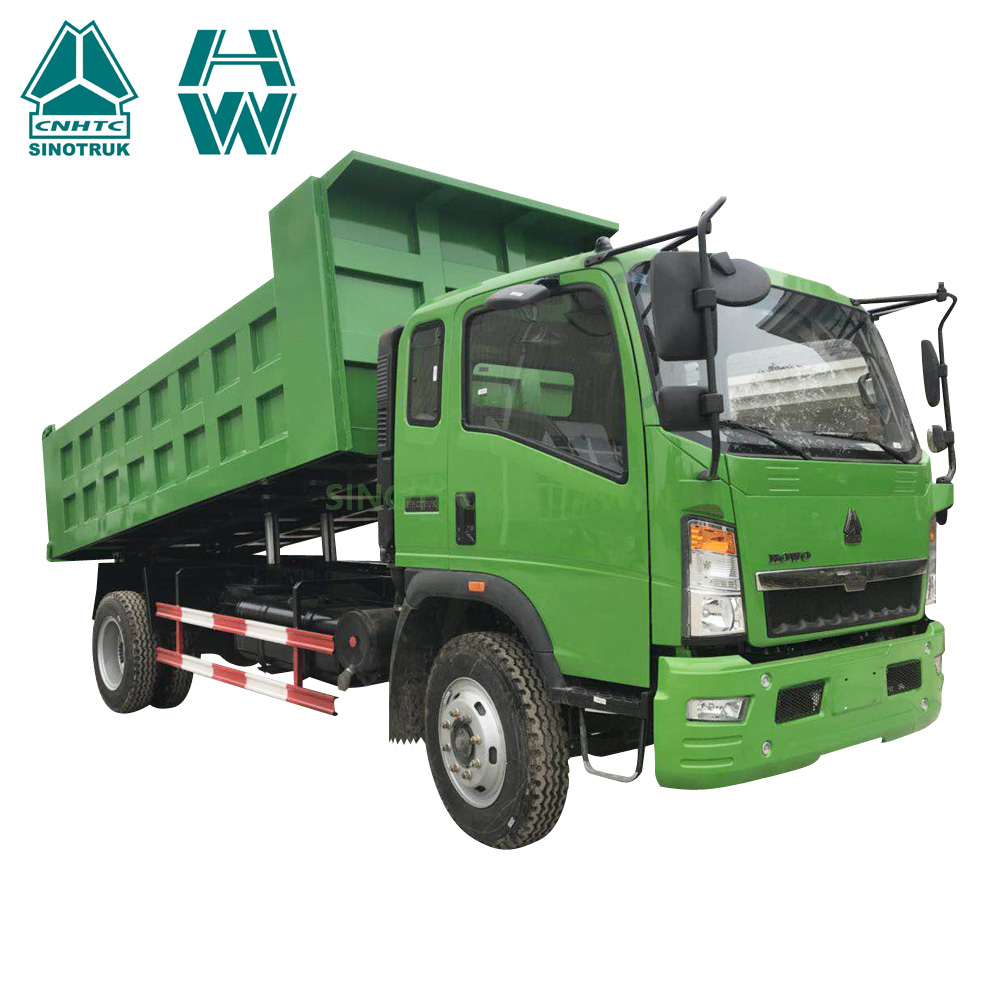

HOWO 4X2 6 wheels dump truck middle tipping
Cabin | Driving type 4x2 LHD |
|
1880 cab, with two seats and A/C, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6200x2450x2850 |
Wheel base (mm) | 3360 | |
Wheel track (front/rear) (mm) | 2020/1830 | |
Approach/Departure angle(°) | 19/27 | |
Weight in KGS | Tare Weight | 2600 |
payload | 6000 | |
Front axles loading capacity | 1x3000 | |
Rear axles loading capacity | 1x6000 | |
Engine | Brand | YUNNEI |
Type | YN33CRD1 | |
Horse Power（HP) | 116 | |
Emission standard | Euro IV | |
Gearbox | WLY10H41, 5 Forwards gear & 1 reverse gear | |
Fuel tank (L) | 120 | |
Tire | 7.50R16 tyre, in total 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |
Bin size | 4150*2050*500 mm, side thickness 4mm, bottom thickness 3mm | |
Hydraulic system | middle positioned | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
HOWO 4X2 6 wheels dump truck middle tipping
Cabin | Driving type 4x2 LHD |
|
1880 cab, with two seats and A/C, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6200x2450x2850 |
Wheel base (mm) | 3360 | |
Wheel track (front/rear) (mm) | 2020/1830 | |
Approach/Departure angle(°) | 19/27 | |
Weight in KGS | Tare Weight | 2600 |
payload | 6000 | |
Front axles loading capacity | 1x3000 | |
Rear axles loading capacity | 1x6000 | |
Engine | Brand | YUNNEI |
Type | YN33CRD1 | |
Horse Power（HP) | 116 | |
Emission standard | Euro IV | |
Gearbox | WLY10H41, 5 Forwards gear & 1 reverse gear | |
Fuel tank (L) | 120 | |
Tire | 7.50R16 tyre, in total 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |
Bin size | 4150*2050*500 mm, side thickness 4mm, bottom thickness 3mm | |
Hydraulic system | middle positioned | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
