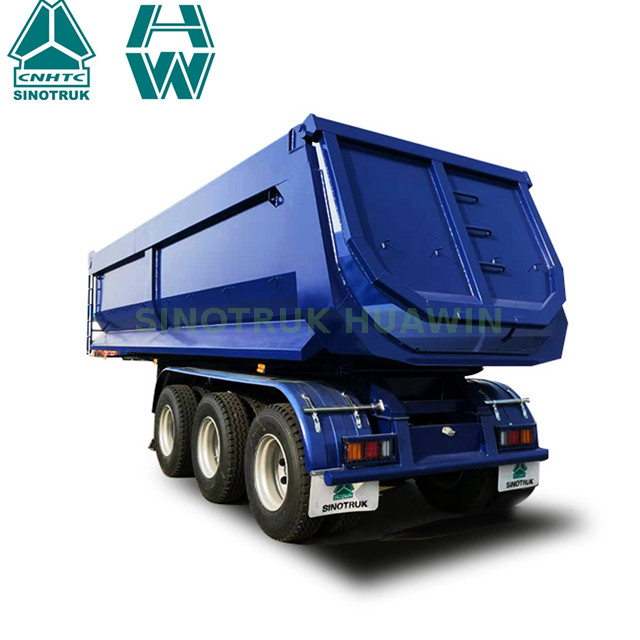

3-axle U Shape Tipper Semi Trailer

CIMC 3 axle U shape tipper trailer is suitable for earthwork, gravel, bulk materials, etc.The U-shaped cargo box subverts the previous design concept and greatly reduces its own weight through a new system structure design. CIMC tipper semi-trailers are suitable for the transportation of bulk cargo such as coal, ore, and building materials.
The carriage adopts side-turning and back-turning self-unloading methods, which can effectively load and unload the machine to transport bulk cargo. The inside of the U-shaped cargo box adopts a streamlined structure, the corners adopt arc transitions, there are no dead corners, it is not easy to stick to the box during unloading, the unloading is faster and more thorough, and the residual rate is basically zero.
Availability:
Quantity:
Inquire Add to Basket

3-axle U shape tipper Semi Trailer

DIMENSIONS

Tare Weight

11500kgs

Payload

45000kgs

Overall Width

2500mm

Overall Length

10500mm

Volume

30m3

SPECIFICATION

Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.

Axle

FUWA brand, 3x13Ton capacity

Suspension

German design heavy duty mechanical suspension

Leaf Spring

Leaf spring

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand two-speed, manual operating, heavy duty landing gear

Wheel Rim

9.0R22.5 steel wheel rim, 12pcs

Tire

12R22.5 tubeless tire, 12pcs

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Tipper box

Dimension

9.5X2.4X1.5M

Material and thickness

High tensile steel T700, side 8mm, floor 10mm.

Hydraulic System

One set of HYVA cylinder


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.



Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
