Sinotruk Howo

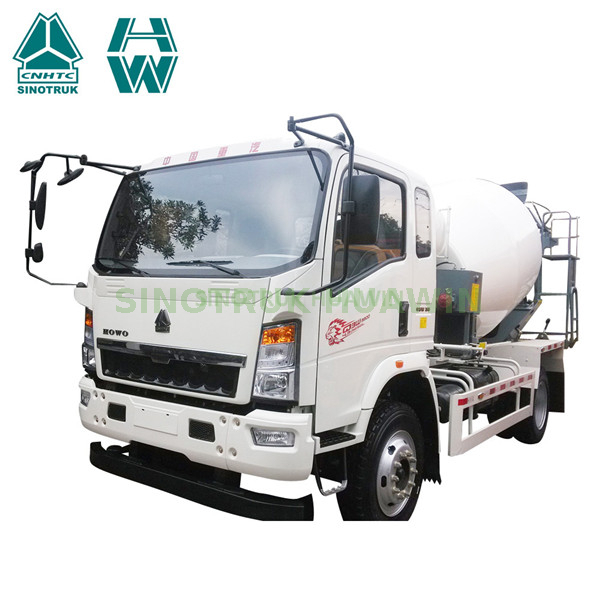

Sinotruk HOWO 4X2 Concrete Mixer Truck with 130HP 4CBM
Cabin | Driving type 4x2 LHD |
|
2080 cabin with two seats, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6850×2350×2850 |
Wheel base (mm) | 3800 | |
Weight in KGS | Tare Weight | 5800 |
payload | 10000 | |
Front axles loading capacity | 5000 | |
Rear axles loading capacity | 10000 | |
Max. driving speed（km/h） | 87 | |
Engine | Brand | YUCHAI |
Model | YC4D130-45 | |
Type | 4-stroke direct injection , in-line, water cooling, turbo charged | |
Horse Power（HP) | 130HP | |
Emission standard | EUROⅡ | |
Gearbox | WLY653H, 6 Forwards gear & 1 reverse gear | |
Tire | 8.25R20 All Steel Meridian Tyre 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake | |
Mixer volume | 4CBM | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
