ZZ4187M3517
Sinotruk HOWO

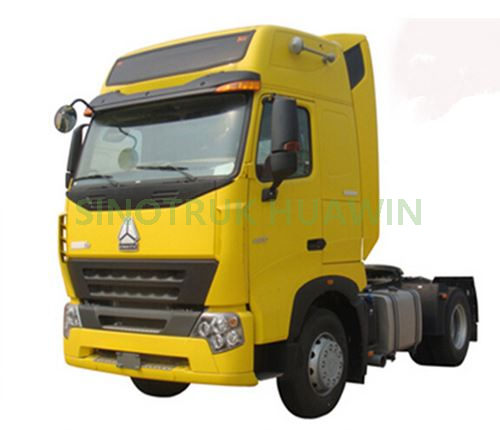

Sinotruk 4X2 HOWO A7 tractor truck
Cabin | Driving type 4x2 LHD |
|
A7-G luxury cab, with two beds and Air Condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6200×2500×3850 |
Wheel base (mm) | 3500 | |
Approach/Departure angle(°) | 15/38 | |
Weight in KGS | Tare Weight | 6800 |
Hauling Capacity | 35000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 1x16000 | |
Max. driving speed（km/h） | 101 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371@2200 rpm | |
Emission standard | Euro Ⅱ | |
Displacement (cc) | 9726 | |
Max Torque（N.m） | 1500@1100-1600 rpm | |
Gearbox | HW19710, 10-speed forward , 2 reverse gears | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF8098, power steering, hydraulic steering with power assistance from Germany | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 7 pcs including one spare | |
Fifth Wheel | 2” or 3.5” | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
