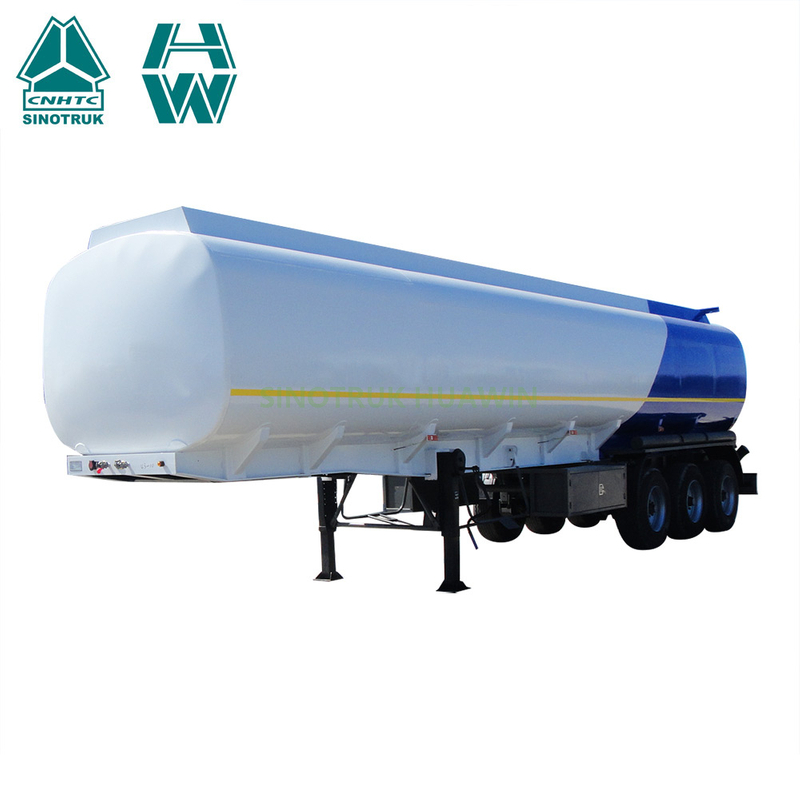

| Sinotruk 42CBM 3 axles fuel tanker semi trailer | |
| Main Dimensions | |
| Overall Length | 11240mm |
| Overall Height | 2800mm |
| Tare Weight | 11500KGS |
| Loading Capacity | 38m3 |
| Tank Body | |
| Shape | Mono block Cylinder |
| Total Volume（m3） | 42CBM |
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel |
| End plate | 6mm steel sheet/Q235 high tensile strength steel |
Manhole cover | Aluminum alloy API manhole cover, ∮500mm, 2 sets with 2 breather valve |
| Bottom Valve | 2 sets of Aluminum API Pneumatic Bottom Valve |
| Discharging valve | 2 sets ∮100mm discharging valves |
| Discharging Pipe | 4”rubber hose, 2 pcs |
| Chassis | |
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
Axle | 3 axles |
| BPW/ FUWA/HJ/L1 Brand 12 ton | |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| King Pin | JOST brand 2” bolt-in king pin |
| Suspension | German design heavy duty mechanical suspension |
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Wheel rim | 9.0-22.5 wheel rim, 13 pieces |
| Tire | 12R22.5 tubeless ire with one spare tire, 13 pieces |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
