ZZ3257N4341
Sinotruk HOWO

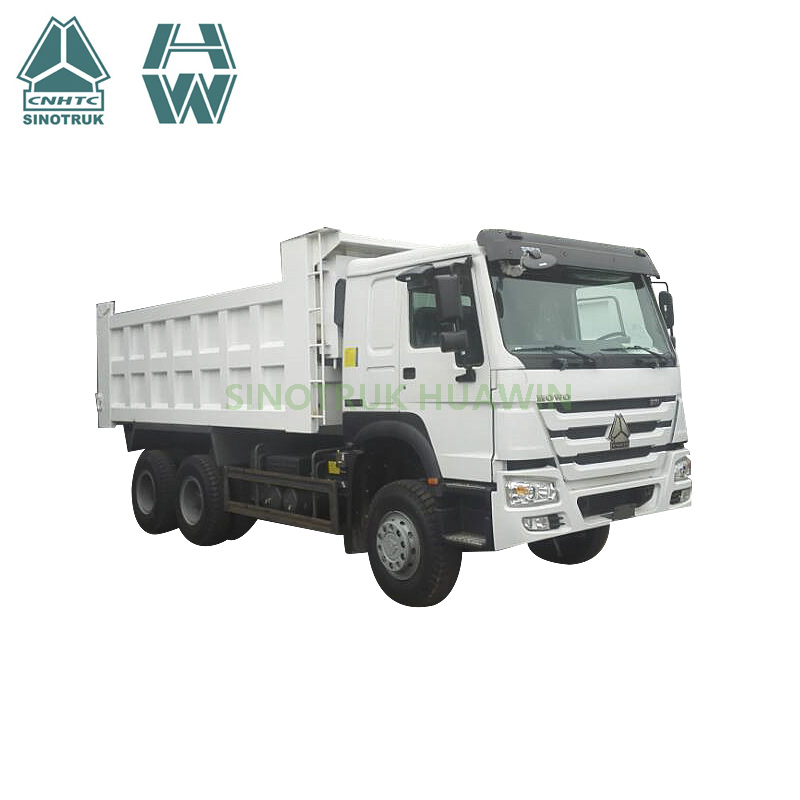

| HOWO 6X4 10 wheels dump truck front tipping | ||
Cabin | Driving type 6x4 LHD | |
| HW70 cab, with A/C and two seats, 70°hydraulically tillable to the front | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7500×2496×3300 |
| Wheel base (mm) | 3225+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830/1830 | |
| Approach/Departure angle(°) | 19/30 | |
Weight in KGS | Tare Weight | 12400 |
| payload | 25000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 75 | |
Engine | Brand | SINOTRUK |
| Model | WD615.69 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power（HP) | 336 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 300 | |
| Tire | 12R22.5 tubeless tyre, 11 pieces including one spare tire | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
| Bin size | 5200*2300*1400 mm, side is 6 mm, front and bottom 8 mm | |
| Hydraulic system | Front tipping | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
