ZZ4257N3247
SINOTRUK HOWO

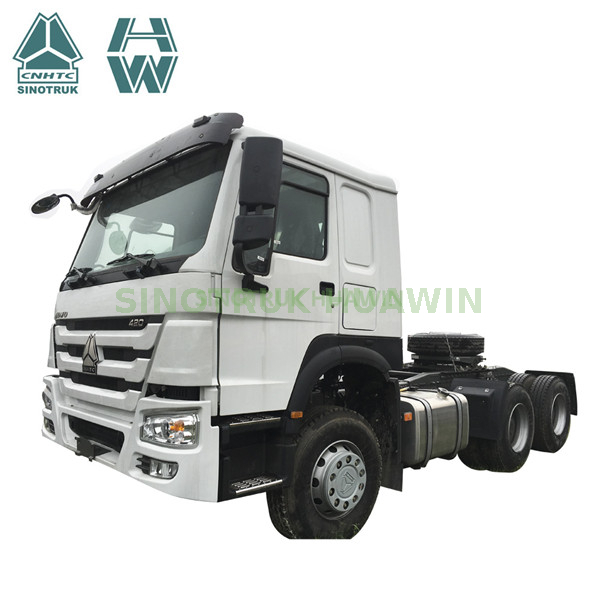

SINOTRUK HOWO 6x4 Tractor Truck | |
Chassis Model | ZZ4257N3247 |
Driving Type | Left Hand Driving (Right Hand Driving is optional) |
Production Year | 2018. New truck. |
Cabin | HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.42 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tires | 315/80R22.5, tubeless tires with one spare tire. Optional: 12.00R20, radial tires. |
Fuel Tank | 400 L |
Fifth Wheel | 90# (3.5 inch) |
Overall Dimension | 6900x2550x3800 mm |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
SINOTRUK HOWO 6x4 Tractor Truck | |
Chassis Model | ZZ4257N3247 |
Driving Type | Left Hand Driving (Right Hand Driving is optional) |
Production Year | 2018. New truck. |
Cabin | HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.42 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tires | 315/80R22.5, tubeless tires with one spare tire. Optional: 12.00R20, radial tires. |
Fuel Tank | 400 L |
Fifth Wheel | 90# (3.5 inch) |
Overall Dimension | 6900x2550x3800 mm |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
Our certificates
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
Our certificates
Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
Factory view
Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
Factory view
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
