SGZ
SINOTRUK

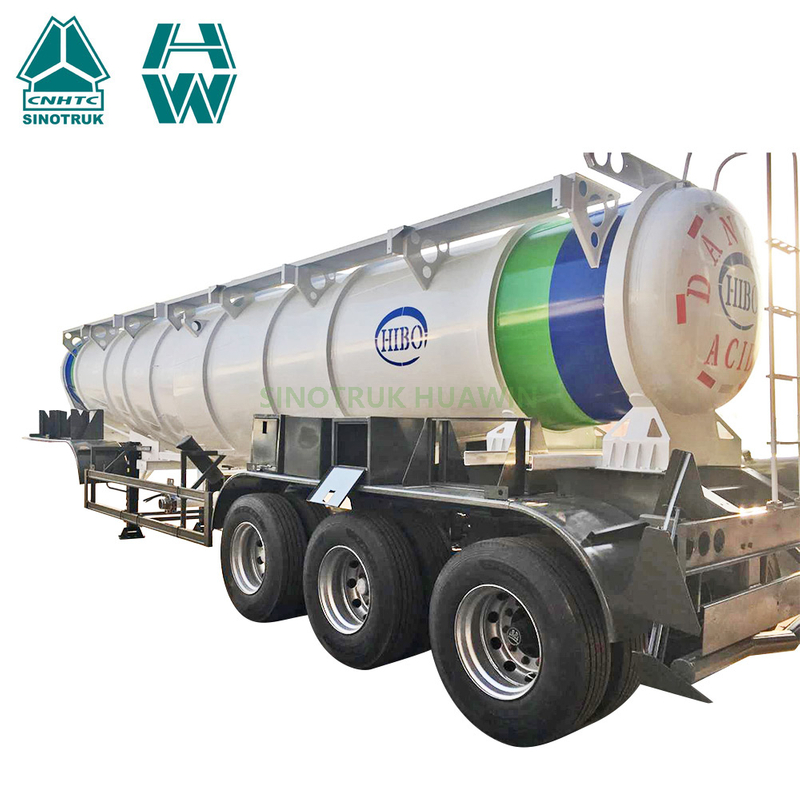

3 AXLE 21,000 LITERS ACID TANKER SEMI TRAILER
| Item | Specification | |
| Tanker Chassis | Chassis Frame | Q345 high strength steel |
| Suspension | Mechanical suspension | |
| Tyre | 315/80R22.5 tyre 13 pieces including one spare tire | |
| Axle | BPW brand 13 ton each axle | |
| Kingpin | JOST 50# bolt in type Kingpin | |
| Landing gear | JOST brand two-speed,manual operating, heavy duty landing gear | |
| Tanker in Weight | Kerb Weight | 10000KGS |
| Rated load | 40,000KGS | |
| Tanker Body | Tank shape | V shape, with enforcement outside |
| Full capacity | Effective volume 21,000 liters | |
| Compartment | 1 compartment | |
| Tank material | Q235 in 6mm thickness | |
| End plate | Q235 in 8mm thickness | |
| Middle part | Q235 in 8mm thcikness | |
| Baffles | 4 baffles | |
| Tanker accessories | Manhole Cover | 500mm in Diameters, one piece with breather valve |
| Discharge valve | SS316 4 inch stainless ball valve and 1 piece butterfly valve | |
| Anti-Static System | copper plate, Static electricity plate and earth cable belt | |
| Other parts | Ladder | Split type ladder fixed at rear of tank |
| Walkway on top of tank | Stainless steel catwalk | |
| Tool box | according customer request | |
| Lime box | according customer request | |
| Mudguard | steel type mudguard | |
| Water tanker | according customer request | |
| Rear bumper | according customer request | |
| Alarm sign | Dangerous lable and warning sign and speed limit signs according to the pictures cutomer offered | |
| Fire Extinguisher Housing tank | Cylinder shaped fire extinguisher tank, can load 9kg fire extinguisher. | |
| Spare tyre carrier | With two spare tire carrier | |
| Fire extinguisher | 9Kg dry power fire extinguisher, 1 pieces | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
