| Quantity: | |
|---|---|
ZZ1317N3667
Sinotruk T5G

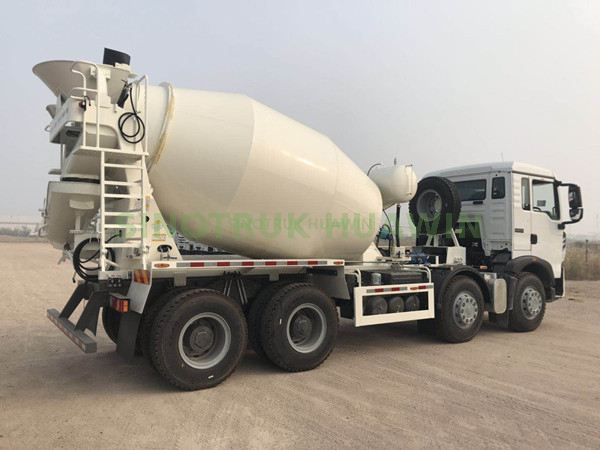

Sinotruk T5G 8x4 Concrete Mixer Truck with RHD
Cabin | RHD T5G-M Standard Cab With one bed and air condition, without ABS. 70° hydraulically tillable to the front As attached photo for ref. |
| |
Vehicle Main Dimensions | (L x W x H)mm | 9350x2500x3800 | |
Wheel base (mm) | 1800+3025+1350 | ||
Weight in KGS | Tare Weight | 13000 | |
Loading Capacity | 40000 | ||
Front axles loading capacity | 2x5500(H153, drum brake) | ||
Rear axles loading capacity | 2x16000(ST16, hub reduction) | ||
Engine | Brand | SINOTRUK | |
Model | MC07.34-40 | ||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, electrical control, common rail | ||
Horse Power（HP) | 340 | ||
Emission standard | Euro 4 | ||
Gearbox | HW15710, 10 forwards & 2 reverse, manual | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | ZF8098, power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 300 | ||
Tire | 11R22.5 Tubeless Tyre, 13 pieces including one spare tire | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | ||
This type is suitable for weight limited transport.
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
Sinotruk T5G 8x4 Concrete Mixer Truck with RHD
Cabin | RHD T5G-M Standard Cab With one bed and air condition, without ABS. 70° hydraulically tillable to the front As attached photo for ref. |
| |
Vehicle Main Dimensions | (L x W x H)mm | 9350x2500x3800 | |
Wheel base (mm) | 1800+3025+1350 | ||
Weight in KGS | Tare Weight | 13000 | |
Loading Capacity | 40000 | ||
Front axles loading capacity | 2x5500(H153, drum brake) | ||
Rear axles loading capacity | 2x16000(ST16, hub reduction) | ||
Engine | Brand | SINOTRUK | |
Model | MC07.34-40 | ||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, electrical control, common rail | ||
Horse Power（HP) | 340 | ||
Emission standard | Euro 4 | ||
Gearbox | HW15710, 10 forwards & 2 reverse, manual | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | ZF8098, power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 300 | ||
Tire | 11R22.5 Tubeless Tyre, 13 pieces including one spare tire | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | ||
This type is suitable for weight limited transport.
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
